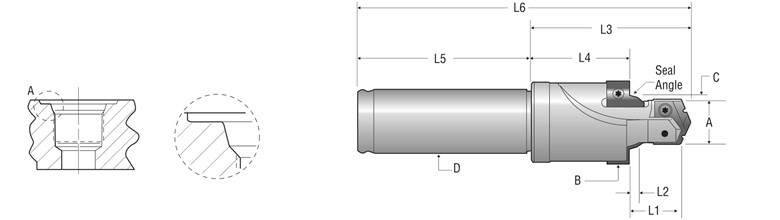

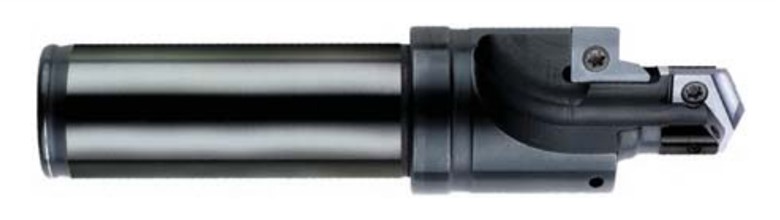

| Ref. | Descrição | A | L1 | B | Ângulo | C | L2 | L3 | L4 | D | L5 | L6 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1102040004Y16FM | Suporte - 7/16-20 UNF-2B | 9.8 | 14.0 | 21.4 | 12° | 12.5 | 2.7 | 38.8 | 22.8 | 16 | 41.9 | 80.7 |
| 1102040005Z16FM | Suporte - 1/2-20 UNF-2B | 11.5 | 14.0 | 23.0 | 12° | 14.1 | 2.7 | 38.8 | 22.4 | 16 | 41.9 | 80.7 |
| 1102040006020FM | Suporte - 9/16-18 UNF-2B | 13.0 | 15.5 | 24.6 | 12° | 15.7 | 2.7 | 47.2 | 29.0 | 20 | 41.9 | 89.1 |
| 1102040008020FM | Suporte - 3/4-16 UNF-2B | 17.5 | 17.5 | 30.7 | 15° | 20.7 | 2.7 | 50.3 | 29.2 | 20 | 41.9 | 92.2 |
| 1102040010125FM | Suporte - 7/8-14 UNF-2B | 20.5 | 20.0 | 34.0 | 15° | 24.0 | 2.7 | 54.4 | 30.1 | 25 | 53.1 | 107.5 |
| 1102040012232FM | Suporte - 1 1/16-12 UN-2B | 25.0 | 23.0 | 42.1 | 15° | 29.2 | 3.5 | 67.1 | 38.9 | 32 | 57.9 | 125.0 |
| 1102040014232FM | Suporte - 1 3/16-12 UN-2B | 28.0 | 23.0 | 45.3 | 15° | 32.4 | 3.5 | 67.1 | 38.2 | 32 | 57.9 | 125.0 |
| 1102040016232FM | Suporte - 1 5/16-12 UN-2B | 31.0 | 23.0 | 48.5 | 15° | 35.6 | 3.5 | 67.1 | 37.5 | 32 | 57.9 | 125.0 |
| 1102040020340FM | Suporte - 1 5/8-12 UN-2B | 39.0 | 23.0 | 58.7 | 15° | 43.6 | 3.5 | 77.8 | 46.6 | 40.0 | 70.1 | 147.9 |
| 1102040024340FM | Suporte - 1 7/8-12 UN-2B | 45.5 | 23.0 | 65.0 | 15° | 49.9 | 3.5 | 77.8 | 45.2 | 40.0 | 70.1 | 147.9 |
| 11020400243150F | Suporte - 1 7/8-12 UN-2B | 45.5 | 23.0 | 65.0 | 15° | 49.9 | 3.5 | 77.8 | 45.2 | 38.1 | 68.3 | 146.1 |
| 1102040032440FM | Suporte - 2 1/2-12 UN-2B | 61.5 | 23.0 | 88.0 | 15° | 65.8 | 3.5 | 96.8 | 60.8 | 40.0 | 70.1 | 166.9 |
| 11020400324150F | Suporte - 2 1/2-12 UN-2B | 61.5 | 23.0 | 88.0 | 15° | 65.8 | 3.5 | 96.8 | 60.8 | 38.1 | 68.3 | 165.1 |
