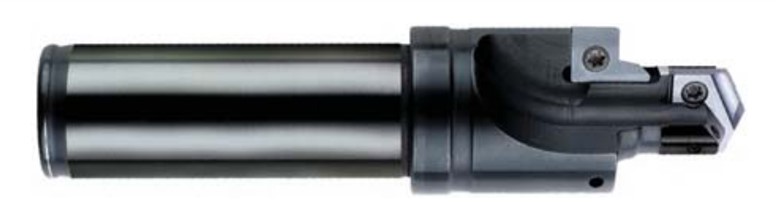

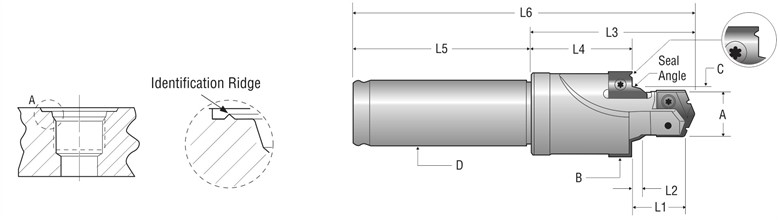

| Ref. | Descrição | A | L1 | B | Ângulo | C | L2 | L3 | L4 | D | L5 | L6 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 110201004RY16FM | Suporte - M12 x 1.5 | 10.5 | 14.1 | 24.0 | 15° | 13.8 | 2.6 | 38.8 | 22.2 | 16.0 | 41.9 | 80.7 |
| 110201005RZ16FM | Suporte - M14 x 1.5 | 12.5 | 14.1 | 26.0 | 15° | 15.8 | 2.6 | 38.8 | 21.8 | 16.0 | 41.9 | 80.7 |
| 110201006R020FM | Suporte - M16 x 1.5 | 14.5 | 15.6 | 28.0 | 15° | 17.8 | 2.6 | 47.2 | 28.3 | 20.0 | 41.9 | 89.1 |
| 110201008R020FM | Suporte - M18 x 1.5 | 16.5 | 17.1 | 30.0 | 15° | 19.8 | 2.6 | 50.3 | 29.6 | 20.0 | 41.9 | 92.3 |
| 110201010R125FM | Suporte - M22 x 1.5 | 20.5 | 18.2 | 34.0 | 15° | 23.8 | 2.6 | 54.4 | 31.6 | 25.0 | 53.1 | 107.4 |
| 110201012R232FM | Suporte - M27 x 2.0 | 25.0 | 22.2 | 40.0 | 15° | 29.4 | 3.3 | 67.1 | 39.4 | 32.0 | 57.9 | 125.0 |
| 110201014R232FM | Suporte - M30 x 2.0 | 28.0 | 22.2 | 43.0 | 15° | 32.4 | 3.3 | 67.1 | 38.8 | 32.0 | 57.9 | 125.0 |
| 110201016R232FM | Suporte - M33 x 2.0 | 31.0 | 22.2 | 49.0 | 15° | 35.4 | 3.3 | 67.1 | 38.1 | 32.0 | 57.9 | 125.0 |
| 110201020R340FM | Suporte - M42 x 2.0 | 40.0 | 22.7 | 60.0 | 15° | 44.4 | 3.3 | 77.8 | 46.4 | 40.0 | 70.1 | 147.9 |
| 110201024R340FM | Suporte - M48 x 2.0 | 46.0 | 25.2 | 66.1 | 15° | 50.4 | 3.3 | 77.8 | 42.6 | 40.0 | 70.1 | 147.9 |
| 110201032R440FM | Suporte - M60 x 2.0 | 58.0 | 27.7 | 76.0 | 15° | 62.4 | 3.3 | 96.8 | 56.6 | 40.0 | 70.1 | 166.9 |
