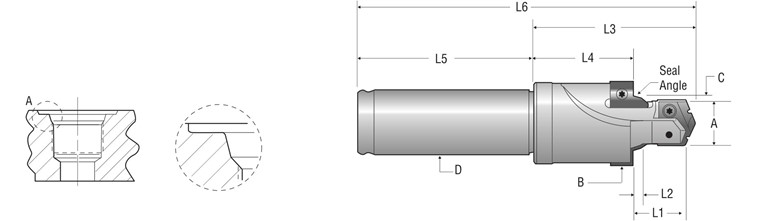

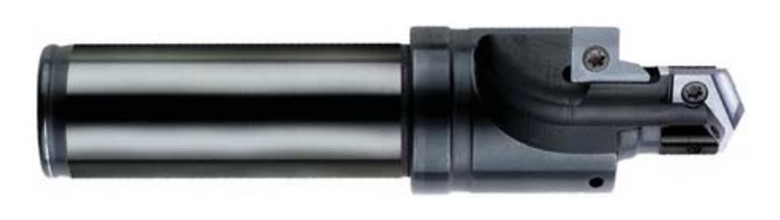

| Ref. | Descrição | A | L1 | B | Angulo | C | L2 | L3 | L4 | D | L5 | L6 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1102020004Y16FM | Suporte - M12x1.5 | 10.5 | 18.0 | 24.0 | 15° | 13.9 | 2.65 | 40.1 | 22.2 | 16.0 | 41.9 | 84.5 |
| 1102020005Z16FM | Suporte - M14x1.5 | 12.5 | 18.0 | 26.0 | 15° | 15.9 | 2.65 | 40.1 | 21.8 | 16.0 | 41.9 | 84.5 |
| 1102020006020FM | Suporte - M16x1.5 | 14.5 | 19.0 | 29.0 | 15° | 17.9 | 2.65 | 47.6 | 28.4 | 20.0 | 41.9 | 92.2 |
| 1102020008020FM | Suporte - M18x1.5 | 16.5 | 21.0 | 31.0 | 15° | 19.9 | 2.65 | 51.2 | 29.5 | 20.0 | 41.9 | 95.8 |
| 1102020010125FM | Suporte - M22x1.5 | 20.5 | 22.0 | 35.0 | 15° | 23.9 | 2.65 | 54.4 | 31.6 | 25.0 | 53.1 | 111.0 |
| 1102020012232FM | Suporte - M27x2 | 25.0 | 27.0 | 41.0 | 15° | 29.5 | 3.35 | 68.1 | 39.4 | 32.0 | 57.9 | 129.6 |
| 1102020014232FM | Suporte - M30x2 | 28.0 | 27.0 | 44.0 | 15° | 32.5 | 3.35 | 68.1 | 39.7 | 32.0 | 57.9 | 129.6 |
| 1102020016232FM | Suporte - M33x2 | 31.0 | 27.0 | 50.0 | 15° | 35.5 | 3.35 | 68.1 | 38.1 | 32.0 | 57.9 | 129.6 |
| 1102020018340FM | Suporte - M38x2 | 36.0 | 27.0 | 55.0 | 15° | 40.5 | 3.35 | 76.6 | 46.8 | 40.0 | 70.1 | 151.5 |
| 1102020020340FM | Suporte - M42x2 | 40.0 | 27.0 | 61.0 | 15° | 44.5 | 3.35 | 76.6 | 45.9 | 40.0 | 70.1 | 151.5 |
| 1102020024340FM | Suporte - M48x2 | 46.0 | 29.0 | 67.0 | 15° | 50.5 | 3.35 | 76.6 | 42.8 | 40.0 | 70.1 | 151.5 |
| 1102020032440FM | Suporte - M60x2 | 58.0 | 32.0 | 77.0 | 15° | 62.5 | 3.35 | 96.1 | 58.4 | 40.0 | 70.1 | 171.0 |
| 11020200CV125FM | Suporte - M20x1.5 | 18.5 | 20.0 | 33.0 | 15° | 21.9 | 2.65 | 50.8 | 32.5 | 25.0 | 53.1 | 107.4 |
