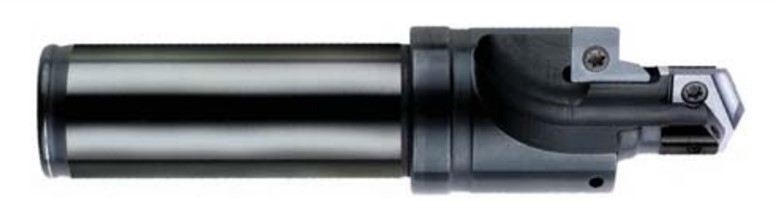

Suporte Accuport 432 - Série AS5202

Anterior | Seguinte
Categorias:
amec

AMEC

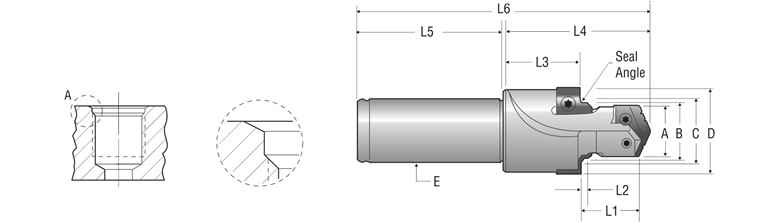

Ref. Descrição A1 A2 L1 B L2 ÂNGULO C L2 L3 L4 D L5 L6
1102030004Y063F Suporte - 7/16-20 UNJF-3B 9.8 9.9 16.79 11.53 2.11 60° 14.34 22.23 22.76 41.58 15.88 47.63 89.20
1102030005Z063F Suporte - 1/2-20 UNJF-3B 11.45 11.5 16.79 13.13 2.11 60° 15.88 23.27 22.39 41.58 15.88 47.63 89.20
1102030006Z075F Suporte - 9/16-18 UNJF-3B 12.85 12.95 18.14 14.73 2.11 60° 17.46 24.87 28.43 49.28 19.05 50.01 99.29
11020300080075F Suporte - 3/4-16 UNJF-3B 17.46 17.5 21.31 19.53 2.39 60° 22.23 30.43 28.57 53.52 19.05 50.01 103.53
11020300101100F Suporte - 7/8-14 UNJF-3B 20.35 20.5 23.75 22.76 2.72 60° 25.46 34.39 30.19 58.17 25.40 57.94 116.10
11020300122125F Suporte - 1 1/16-12 UNJ-3B 24.8 25.0 27.15 27.58 3.18 60° 31.42 41.53 37.94 70.23 31.75 57.94 128.17
11020300142125F Suporte - 1 3/16-12 UNJ-3B 28.0 28.17 27.15 30.76 3.18 60° 34.61 45.09 37.22 70.23 31.75 57.94 128.17
11020300162125F Suporte - 1 5/16-12 UNJ-3B 31.15 31.34 27.15 33.93 3.18 60° 37.77 48.77 36.51 70.23 31.75 57.94 128.17
11020300203150F Suporte - 1 5/8-12 UNJ-3B 39.0 39.29 28.47 41.86 3.18 60° 45.69 57.91 44.32 80.95 38.10 68.28 149.23
11020300243150F Suporte - 1 7/8-12 UNJ-3B 45.5 45.64 28.75 48.21 3.18 60° 52.07 65.28 42.58 80.95 38.10 68.28 149.23
11020300324150F Suporte - 2 1/2-12 UNJ-3B 61.3 61.49 34.87 64.11 3.18 60° 67.97 88.65 45.78 93.65 38.10 68.28 161.93
